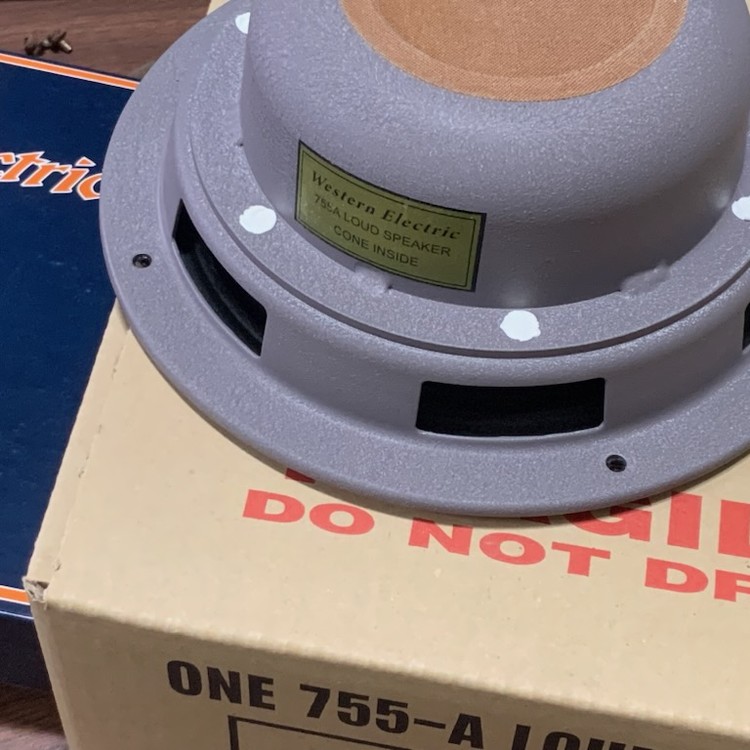

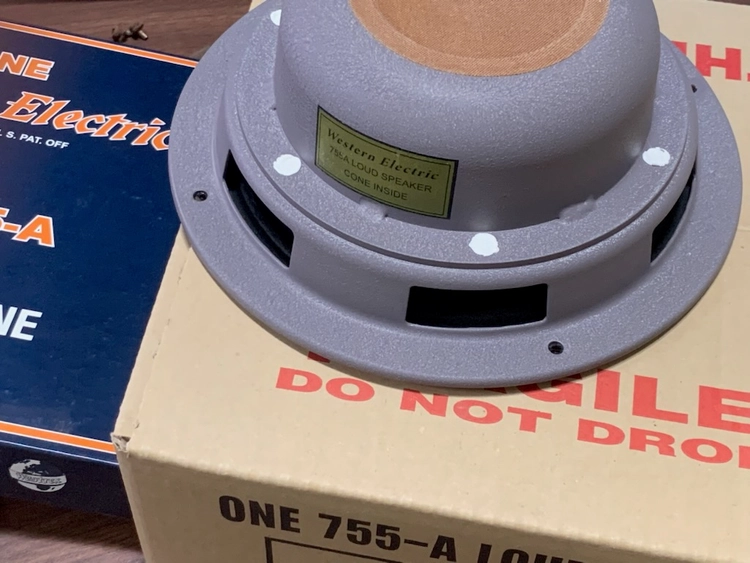

WESTERN ELECTRIC TI-755A UNIT
Pricing inquiry (see details)
WESTERN ELECTRIC® DRIVE UNIT 1EA
Reviews
Q&A
Reviews
Q&A

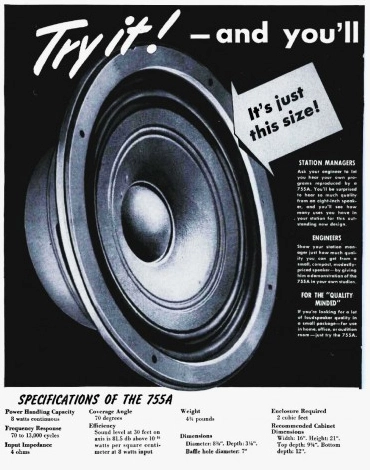

TI-755A – Technical Specifications
- Frequency Response: 70Hz – 13kHz
- Voice Coil Impedance: 4 ohms
- Coverage Angle: 70°
- Power Handling Capacity: 8 watts (continuous)
- Efficiency:
At a distance of 30 feet on-axis, the TI-755A produces a sound pressure level of 81.5 dB above 10⁻¹⁶ watts/cm² with an 8-watt input, measured using a warble tone between 500Hz and 2,500Hz. - Enclosure Requirement: 2 cubic feet, completely sealed
- Overall Diameter: 8-3/8"
- Overall Depth: 3-1/8"
- Baffle Cutout Diameter: 7"
- Mounting Holes: 4 holes equally spaced on a 7-5/8" diameter circle
- Finish: All metal parts are cadmium-plated
- Weight: 4 lbs 12 oz
